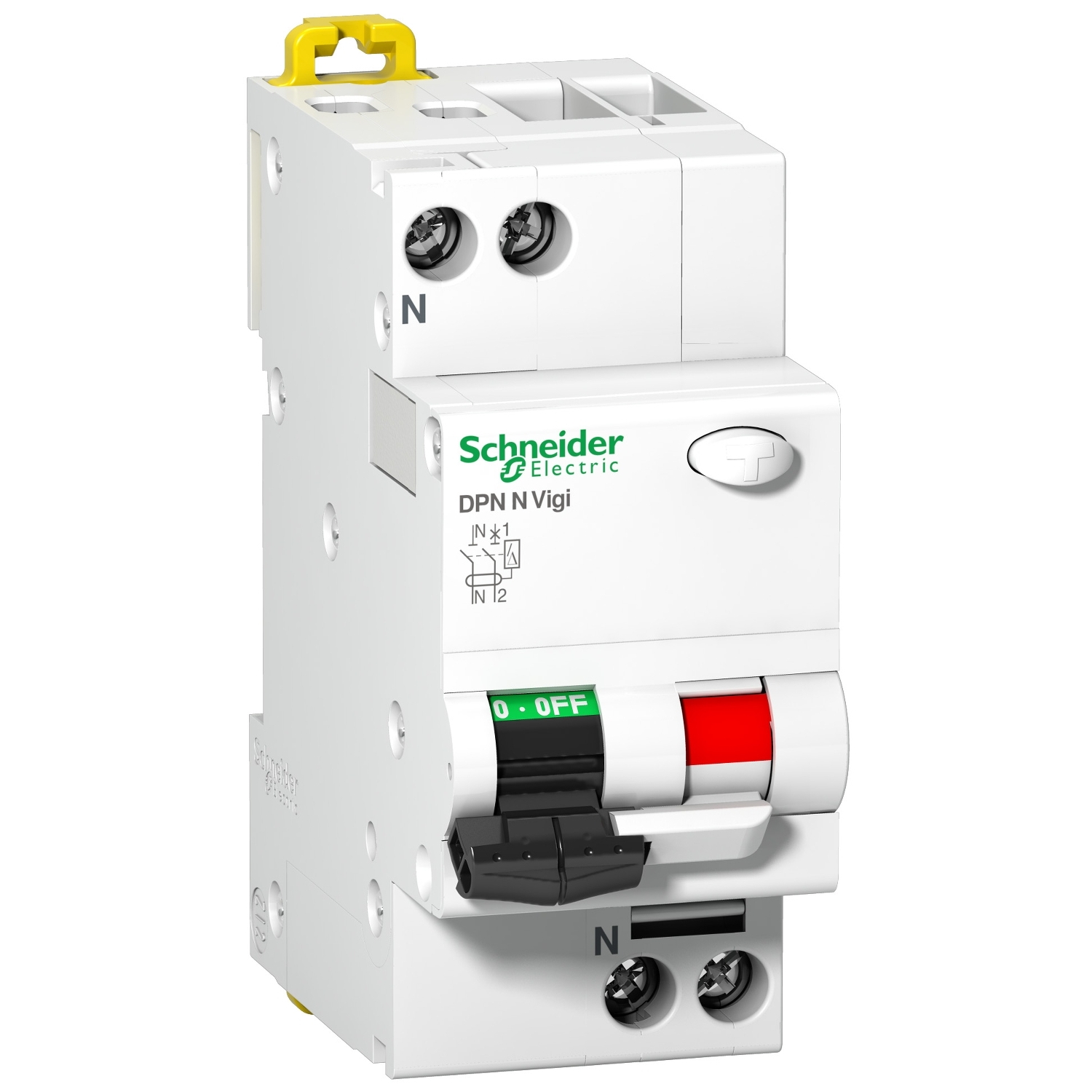

AEC Switchgear Introducing the Schneider RCBO A9N19666, the ultimate solution for protecting your electrical circuits against overcurrents and insulation faults. This Acti9 DPN N Vigi earth leakage circuit breaker is designed for maximum safety with a sensitivity of 30mA and voltage independent technology. With a 1P+N configuration and a rated current of 20A, this RCBO offers complete protection against short circuits, cable overload, electrical shock, and fire hazards.

Compliant with EN 61009-1 and IEC 61009-1 standards, this Schneider RCBO is built to last with an electrical endurance of 20000 cycles and mechanical endurance of 20000 cycles. The Ui rated insulation voltage of 400VAC, Uimp rated impulse withstand voltage of 4kV, and pollution degree of 3 ensure reliable performance in any environment.

Easy to install on DIN rail and with a narrow width of 9mm pitches, this white (RAL9003) RCBO is both practical and aesthetically pleasing. With a weight of just 0.19kg, IP20 and IP40 degree of protection in an enclosure, and an operating temperature range of -5°C to +60°C, this Schneider RCBO offers peace of mind and security for your electrical system. Don't compromise on safety - choose the Schneider RCBO A9N19666 for complete protection and reliability.
