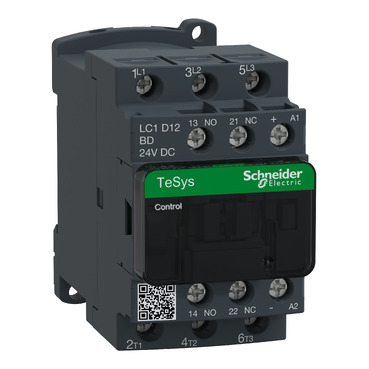

AEC Switchgear Introducing the SCHNEIDER CONTACTOR LC1D12BD, the ultimate solution for your motor control applications. This TeSys D contactor boasts 3 poles (3NO) and can handle up to 12A/690V AC-3/3e (5.5kW@400V). Equipped with a 24V DC coil and transient suppressor module, this contactor ensures smooth and reliable operation.(LC1D12BD)

But that's not all - the LC1D12BD comes with 1NO+1NC built-in auxiliary contacts, certified with NC mirror for added safety. With screw clamp terminals for easy connection, this contactor is designed for high operating rates of up to 3600 cycles/hour and can withstand temperatures up to 60°C.

Compact in size with a width of 45mm, the LC1D12BD can be conveniently mounted on a DIN rail or fixed with screws. Plus, it is multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine) for your peace of mind. Trust SCHNEIDER CONTACTOR LC1D12BD for high reliability and durability in any environment.
