LC1D25BL

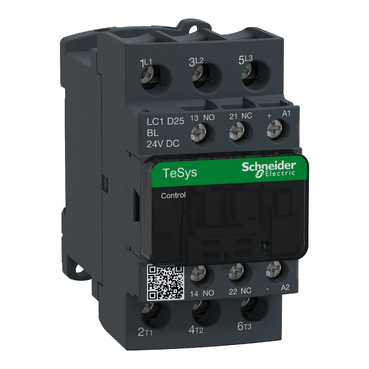

AEC Switchgear Introducing the SCHNEIDER CONTACTOR LC1D25BL TeSys D contactor, the ultimate solution for motor control applications up to 25A/690V AC-3/3e (11kW@400V). This high-quality switchgear features a low consumption 24V DC coil with a transient suppressor module, ensuring efficient and reliable performance. With 3 poles (3NO) and 1NO+1NC built-in auxiliary contacts (NC mirror certified), this contactor offers versatility and convenience for all your industrial needs. Designed for operating rates of up to 3600 cycles/hour and environments up to 60°C, the SCHNEIDER CONTACTOR LC1D25BL TeSys D contactor delivers unmatched durability and performance. Its compact design (45mm width) and DIN-rail mounting or screw fixing options make installation a breeze. Plus, with multi-standards certification (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliance (RoHS/REACh), you can trust that this contactor meets the highest industry standards. Don't settle for anything less than the best. Choose the SCHNEIDER CONTACTOR LC1D25BL TeSys D contactor for all your motor control needs and experience the difference in quality and
