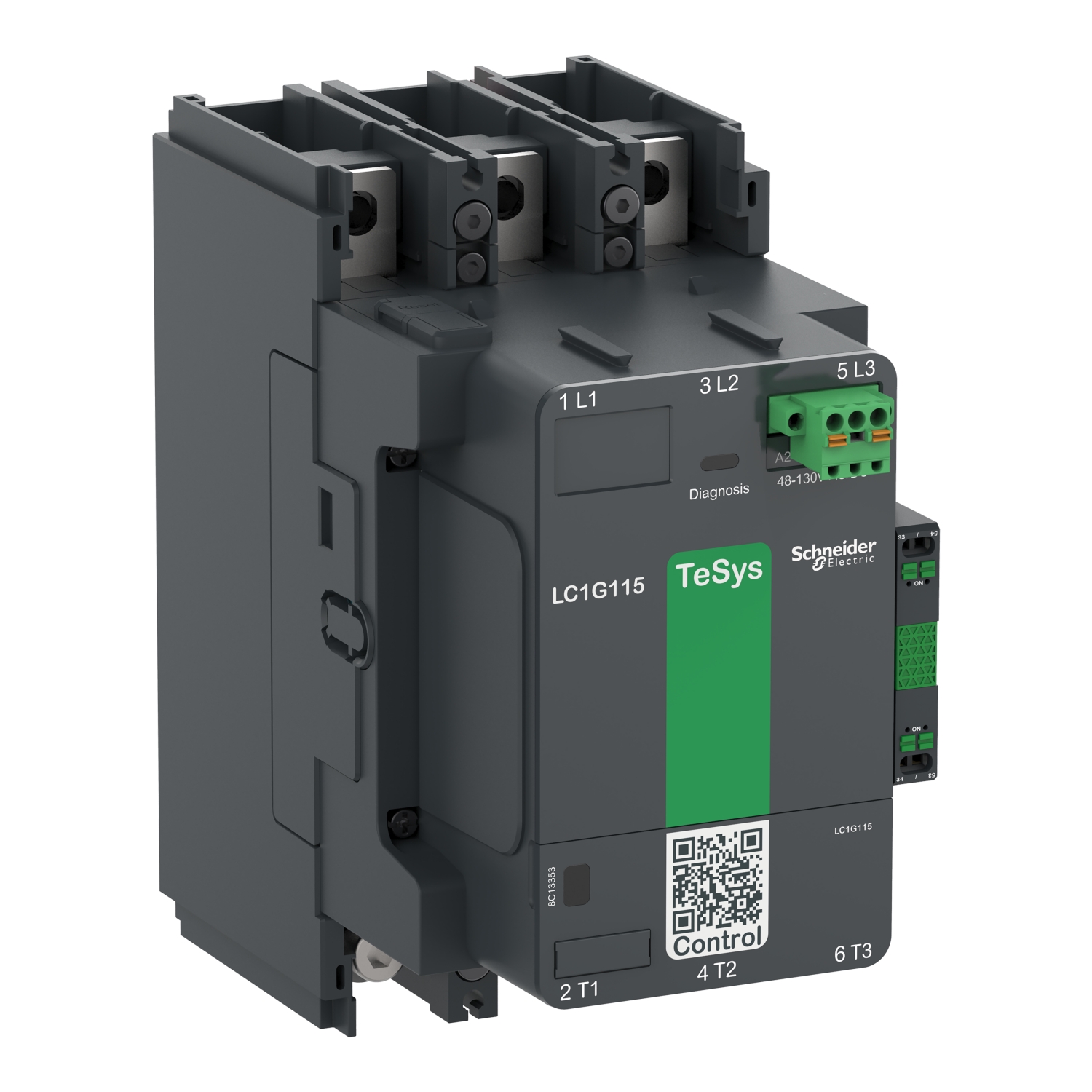

LC1G115KUEN
AEC Switchgear Introducing the TeSys Giga high power contactor LC1G115KUEN perfect for AC-3 applications up to 115A and 75kW at 440V. This 3 pole contactor features a 100-250V AC/DC wide band electronic coil and a highly reliable 1NO+1NC auxiliary contact block for added convenience. With a maximum operating rate of 600 cycles per hour and a mechanical durability of 5 Mcycles, this contactor is built to last in demanding environments up to 60°C.
Not only does this contactor offer high reliability and durability, but it also includes Local Contact Wear Diagnosis (CWD) for continuous monitoring and easy maintenance. The possibility to replace the switching module and mount the OLR directly below the contactor further enhances its usability. Installation is simple with bolted power connections and spring terminals for control connections, all easily accessible from the front.
With IP2x protection and shrouds conforming to IEC 60529 and VDE 0106, this contactor is safe and reliable in any setting. Plus, its compact size allows for panel space savings, while its multi-standard certifications and Green Premium compliance ensure it meets industry standards.
