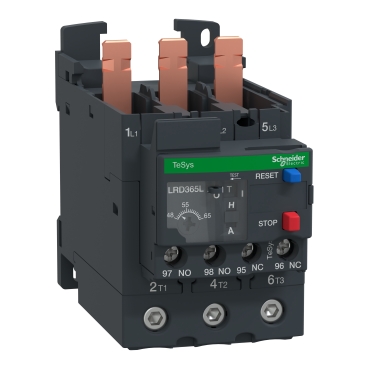

Upgrade your motor protection with the AEC Switchgear LRD365L TeSys LRD thermal overload relay. This innovative device offers a wide range of features to keep your 3-phase motors safe and operating efficiently. With a thermal setting range of 48-65A and a tripping class of 20, you can trust that your motors are protected against overload.(LRD365L)
Not only does this relay offer advanced thermal adjustment capabilities, but it also includes a differential device with phase failure and load unbalance detection. This ensures that your motors are safeguarded from a variety of potential issues. The relay is equipped with a range of convenient controls, including a thermal adjustment dial, manual-automatic reset selector, and test selector for simulation of a tripping event.
Additionally, the relay features reset and stop buttons, a flag indicator, and 2 auxiliary contacts for fault signaling. The settings are protected by a transparent cover that is lockable by sealing, providing added security. Connection is made easy with EverLink BTR screw terminals, allowing for direct connection to the bottom terminals of 3-pole contactors.
