Description

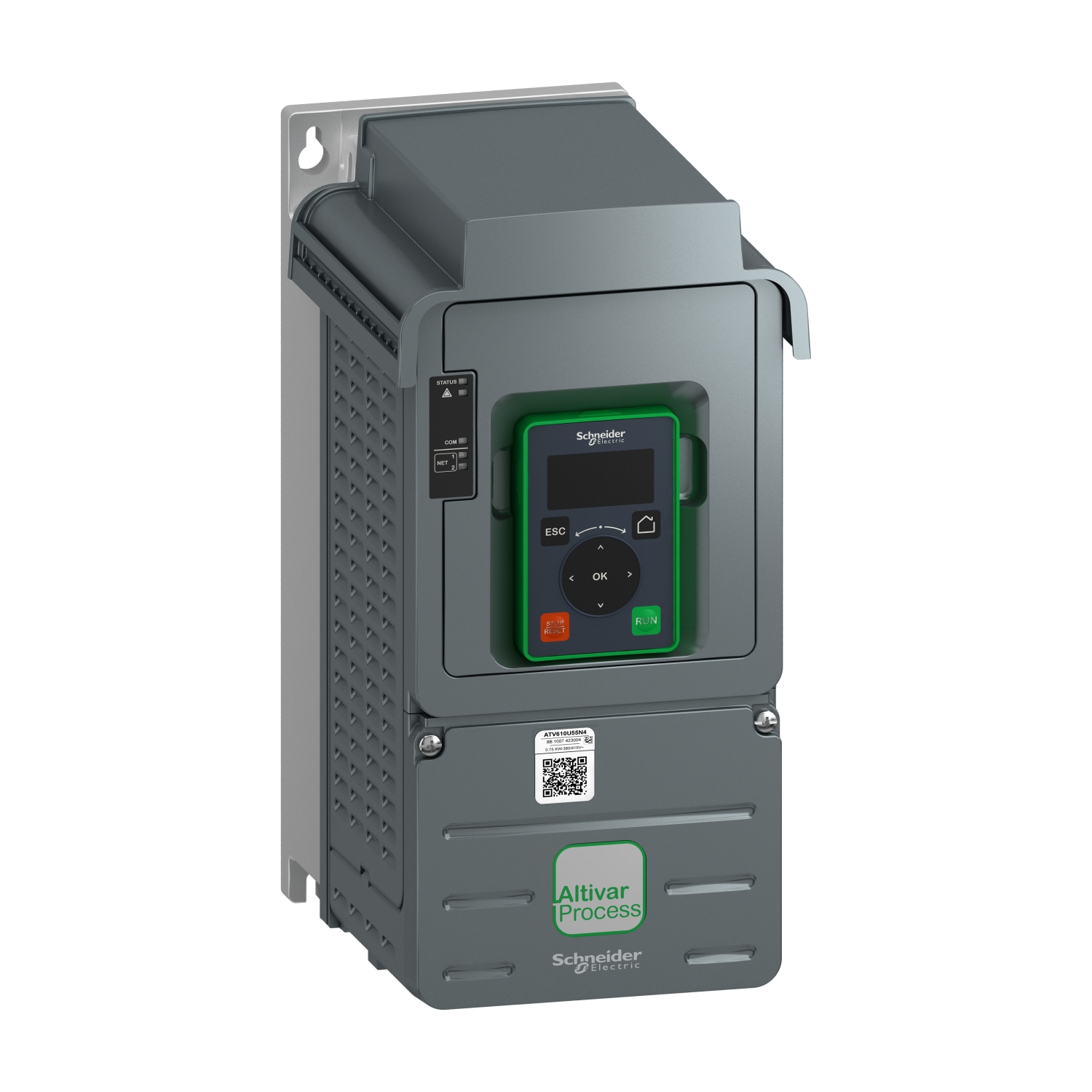

AEC switchgear provided AC drive ATV610U55N4 This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 5.5kW / 7.5hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 4kW / 5hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 4.1kg and its dimensions are, 145mm wide, 297mm high, 203mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management
Technical Specifications- Download
Specifications of AC drive ATV610U55N4
| Manufacturer | Schneider Electric |
| Model | ATV610U55N4 |
| IP Protection | IP20 |
| kW Rating | 5.5kW |
| Series | AVT610 |
| Type | Altivar |
| Application | Fan, pump, compressor, conveyor |
| Current А | 11.6 |
| Phase | 3 |
| Output frequency, Hz: | 0,1-599 |
